GSC Power-Division Beehive Spring Set with Titanium Retainer for all 4G63s
$ 454.00
| GSC5040 Beehive Valve Spring Kit with Ti Retainers for all 4G63s | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure with GSC S2 Profile | Maximum Valve Lift (in) | ||||
| Beehive | 0.948 | 1.590 / 1.570 | 84 / 90 | 227 lbs @ 1.149" / 231 lbs @ 1.137" | 0.562 | ||||
- Max RPM: 8,500 RPM
- Max boost: 30 psi

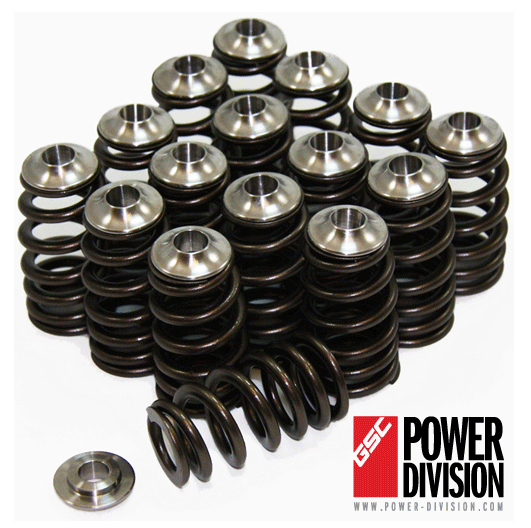

The GSC Power-Division Beehive Valve Spring Kit with Ti retainer for all 4G63s includes 16 titanium retainers and 16 beehive valve springs. This set can be used for EVO 1-7 & EVO 8/9 if you are looking to replace the OEM retainers. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilites. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
Beehive Spring Benefits:
- Rev faster
- Lighter components
- More durable design
- Less stress on valvetrain components
- Higher spring frequency for more precise valve control
- More valve control equals more aggressive cam profiles
- Nano peened for faster break-in and less spring stress
